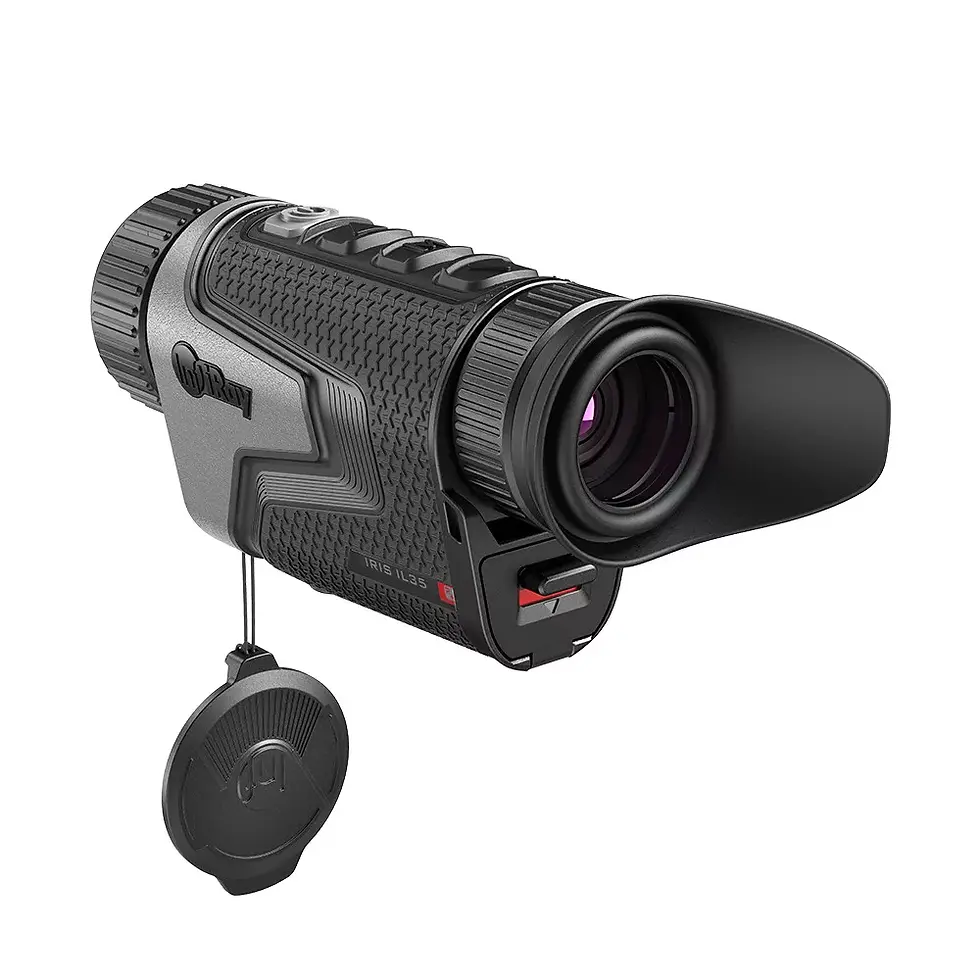

InfiRay IRIS IL35 Thermal Imaging Camera
Compact Lightweight as the Perfect Companion for Hunting
High Imaging Performance in a Compact Format
Reality+ ensures more details and less noise
High-performance sensor with NETD <= 20 mK
AMOLED Display with 1024×768 Pixels
18650 Replaceable Battery System
The IRIS Series by InfiRay introduces two new thermal imaging handheld devices, offering high imaging performance, user-friendly design, and silent controls. These models are not only highly useful but also lightweight, fitting effortlessly into any jacket pocket without causing any inconvenience.
The IL19 and IL35 from the innovative IRIS Series set new standards. The improved light transmission of the lens combined with the R+ technology allows for enhanced detail reproduction and significantly reduces image noise. InfiRay's high-performance sensor with a NETD of <= 20 mK, coupled with the 384×288 Pixel Sensor and the high-resolution AMOLED Display (1024×768 Pixels), ensures top-notch imaging performance and detail accuracy. The F0.9 lens enables 20% more light transmission compared to a regular F1.0 lens, producing brighter and clearer images. Additionally, the IRIS devices ensure optimal visibility and viewing quality from any angle with a 10mm exit pupil.
Three new color modes ensure fatigue-free observation. The IRIS models offer an expanded color palette with Red, Green, and Violet modes, reducing eye fatigue. In addition to the base magnification, objects can be digitally zoomed up to 4x.
The WiFi function allows easy connection of the thermal imaging camera to the InfiRay app for transferring image data to any device. The IRIS Series is equipped with replaceable batteries, enabling quick and easy handling during hunting. With compact dimensions of 143x47x74 mm and a weight of only 330 g, the IRIS models become versatile companions for all hunting and outdoor activities.
Technical Specifications - InfiRay IRIS IL35
Detector
384 x 288 Pixels @12μm
Focal Length
35mm
Display
1,024 x 768 Pixels AMOLED
NETD
<20mK
Aperture
F0.9
Lens Focus
Manual
Field of View (FOV)
7.5° x 5.7°
Field of View at 100m
13m
Frame Rate
50Hz
Detection Range
1800m
Base Magnification
4x (up to 16x digital zoom)
Digital Zoom
1x to 4x
Color Palettes
5 (White / Black / Red / Green / False Colors / Bird Watching Mode)
Diopter Adjustment
-5~+5D
Photo Capture
Yes
Video Capture
Yes
WLAN / App
Yes
Battery Life
5 Hours
Battery Type
Replaceable 18650 Lithium-Ion Battery
Internal Storage
32GB
Interfaces
USB-C
Protection Class
IP67
Weight
330g
Dimensions
143 x 47 x 74 mm
